TU-11A-Automatic-Wave-Pressure-Meter-Kit
- ENGINE AND TRANSMISSION OIL PRESSURE TEST AND DIAGNOSTIC: This engine transmission oil pressure tester kit is used for measuring oil pressure on lubrication system quickly and accurately. The oil pressure gauge readings assist to diagnose if there are following problems: blocking oil strainer or oil filter, broken pressure-limiting valve spring, poorly working oil pump, low/high oil viscosity, blocking lubrication oil channel, blocking oil filter core and by-pass valve is difficult to open etc.
- EASY TO TEST ENGINE OIL PRESSURE: Remove low oil pressure switch, attach the oil pressure test with appropriate adapter, start engine to read the pressure on the gauge. Verify vehicle oil pressure is normal or not against manufacturer’s recommended readings. Turn off the engine and remove the oil pressure tester, replace the low oil pressure switch, then done.

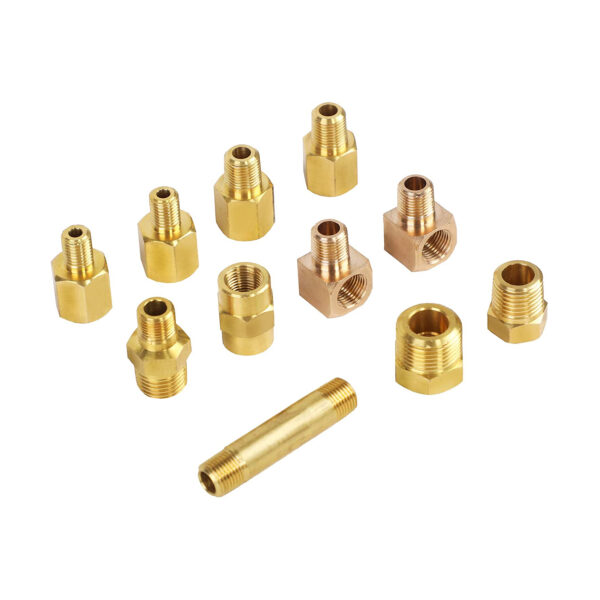

- FITMENT TYPE FOR JIFETOR OIL PRESSURE GAUGE KIT: This oil pressure test tool kit includes 12PCS selectable brass connectors (include the one on hose), very sturdy and durability. These connectors can be connected to the corresponding sizes oil pressure test service port, on most vehicles with gasoline or diesel engine, includes car, motorcycle, ATV, truck and so on.

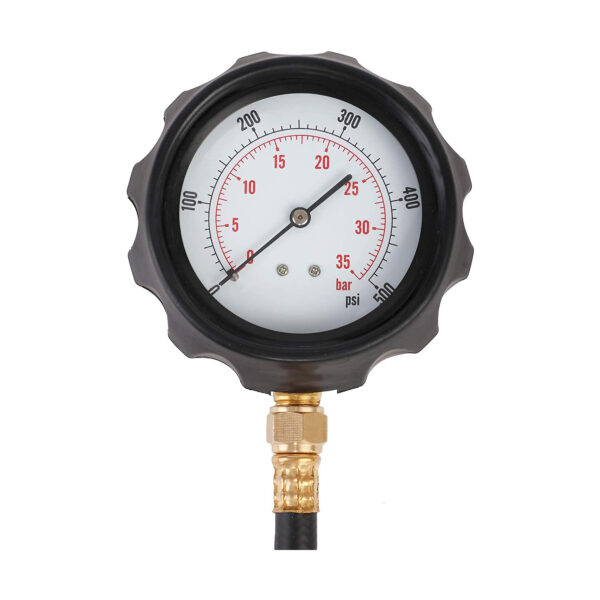

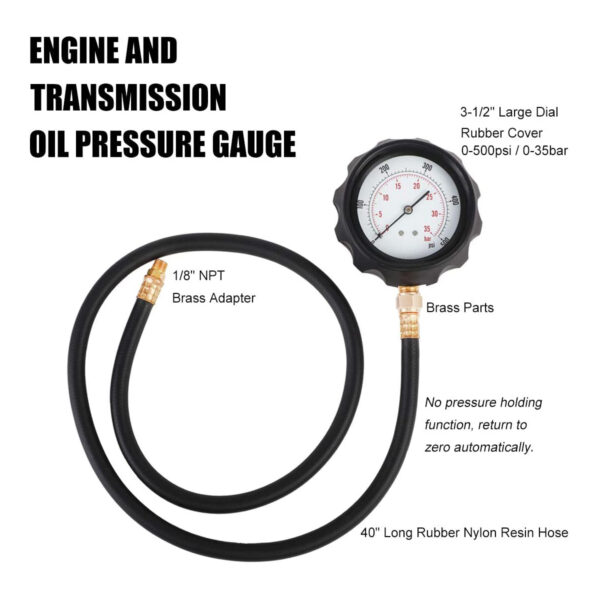

- TRANSMISSION FLUID PRESSURE GAUGE AND HOSE: The engine oil pressure tester gauge adopts rubber cover protected 3-1/2″ large dial. 0-500psi and 0-35bar big scale range, is more suitable for testing big engine. No pressure holding function, return to zero automatically. The 40″ long rubber nylon resin hose, is equipped with a 1/8″ NPT brass adapter. Max working pressure: 500psi
Description

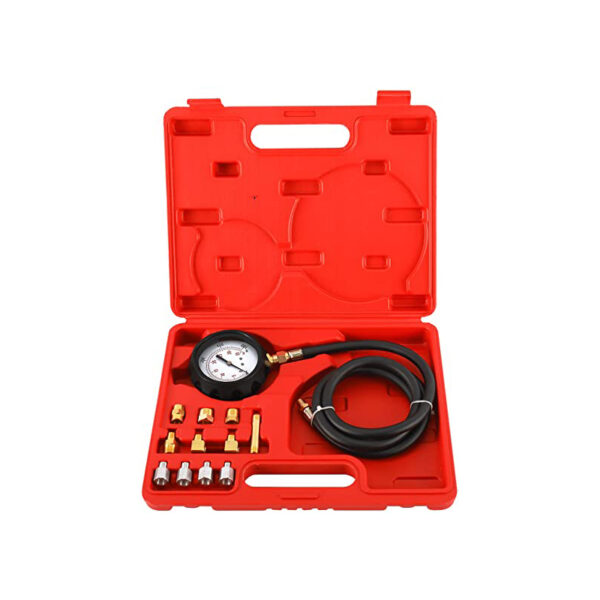

PACKING LIST
- 1x 3-1/2″ Pressure Gauge with 40″ Long Hose and 1/8″ NPT Brass Adapter
- 1x 3/8″ NPT Male x 1/8″ NPT Female Brass Adapter
- 1x 1/8″ NPT Female x 1/8″ NPT Female Brass Adapter
- 1x 1/4″ NPT Male x 1/8″ NPT Female Brass Adapter
- 1x 1/8″ NPT Male x 1/8″ NPT Male Brass Extension Adapter
- 1x 1/4″ NPT Male x 1/8″ NPT Male Brass Adapter
- 2x 1/8″ NPT Male x 1/8″ NPT Female Brass Adapter(90 Degree Elbow)
- 2x 1/8″ NPT Male x 1/8″ NPT Female Brass Adapter
- 2x 1/16″ NPT Male x 1/8″ NPT Female Brass Adapter
- 1x Customized Blow Molding Case, 12-3/4″L x 10″W x 2-1/2″H
- 1x Instruction
EASY TO OPERATE
1. Remove low oil pressure switch
2. Attach tester using appropriate adapter(s) for the engine
3. Start engine
4. Read the pressure on the gauge
5. Verify vehicle oil pressure is normal against manufacturer’s recommendations
6. Remove tester and turn off the engine
7. Replace the low oil pressure switch
DIAGNOSTIC RESULT
Please refer to equipment manufacturer’s operation instruction and compare to the manufacturer’s recommended readings, to check if the reading is out of the normal range. And check if the dashboard light works well or not
Below the minimum oil pressure: blocking oil strainer or oil filter, broken pressure-limiting valve spring , poorly working oil pump, low oil viscosity
Above the maximum oil pressure: high oil viscosity, blocking lubrication oil channel, blocking oil filter core and by-pass valve is difficult to open
Additional information
| Weight | 14 kg |
|---|---|
| Dimensions | 32.5 × 32.5 × 50 cm |
| Brand | GTY TOOLS |
| material | Brass, Plastic, Rubber |
